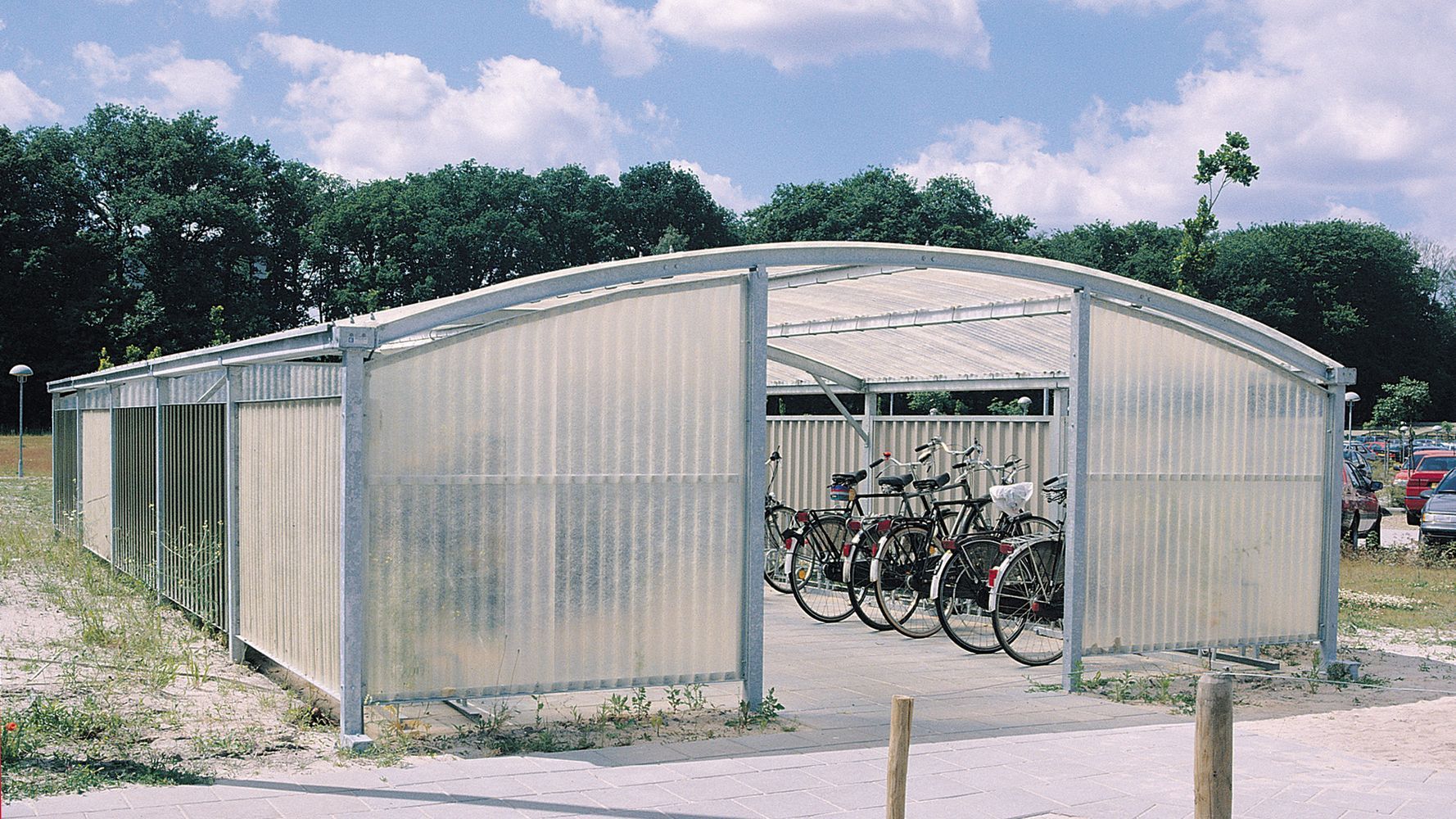

Model 1000

Model 1000 is a practical roofing solution with a wide central aisle. A perfect bike parking garage with great ease of use.

The wide central aisle of the Model 1000 bicycle parking garage offers an easy entrance and exit, as well as parking on both sides of the path.

By being able to store bicycles on both sides of the parking shelter, you increase the usage of the garage.

Vandal resistant rainwater drain integrated into the construction.

Dimensions 487 x 557 cm, suitable for 24 bicycles, centre to centre 37,5 cm.
Column spacing at centre 480 x 550 cm.
Clear height 209 cm.
Columns made of steel tubing 70 x 70 x 3 mm, frames and purlins made of IPE 80 and IPE 100.
Gutters made of pressed sheet steel, thickness 3 mm. Rainwater drainage integrated in the steel structure.
Hot-dip galvanised, NEN-EN-ISO 1461.
Roof made of corrugated polyester sheets in natural colour, fixed with corrugated aluminium strips to prevent storm damage.
Walls of vertical meranti open trellis, treated with water-based transparent varnish.
Foundation: concrete piles, height 37 cm.

Two or more canopies can be joined together lengthwise and/or widthwise.
Deviations from standard dimensions possible.
Roof available in galvanised or coated corrugated steel sheets.
Walls made of various types of wood with FSC® quality mark, hard glass, Trespa, steel or aluminium sheet piling, steel grids or perforated sheets.
Wooden parts finished with an opaque lacquer.
Single revolving door, double revolving door or sliding door.
Powder-coated steel parts in any RAL colour.
